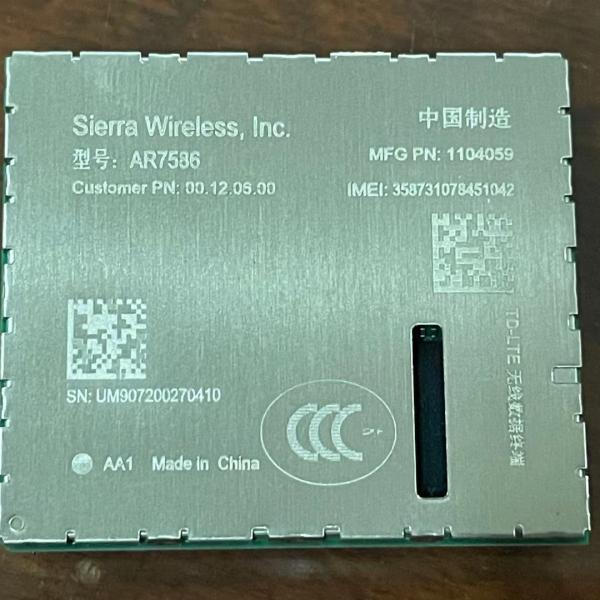

    AR7586 Wireless Router Module 4G LTE Cat-4 Connectivity for automotive OEMs

    Ask Lasest Price
    Model Number : AR7586
    Brand Name : Sierra Wireless
    Supply Ability : 10000 Piece/Pieces per Day
    Price : $18.00 - $22.00/pieces
    • Product Details
    • Company Profile

    AR7586 Wireless Router Module 4G LTE Cat-4 Connectivity for automotive OEMs

    AR7586 AR7592

    4G LTE Cat-4 connectivity with 3G and 2G fallback for China
    The AR7586 module is part of the AR Series offering a smart solution for automotive OEMs and Tier-1 suppliers to build a
    Linux-based TCU (telematics control unit) using a single module.
    Delivering up to 150 Mbps download speed, this LTE Cat-4 module offers an application processor running the open source
    Linux-based Legato® platform. This AR Series module includes a GNSS receiver and provides a secure device-to-cloud architecture,
    reducing the risk and system complexity with its established automotive-grade certifications, quality processes, and tolerance to
    extreme operating environments and temperatures.
    Modules just like AR7586 are also available in other parts of the world: Americas – AR7582, EMEA – AR7584, Japan, Korea, Australia
    – AR7588.

    4G LTE

    Category
    Cat-4
    Frequency Bands
    B1, B3, B8, B28, B38, B39, B40, B41

    3G

    HSPA+, UMTS
    B1, B3, B8
    TD-SCDMA
    B34, B39

    2G

    EDGE, GSM, GPRS
    900, 1800

    DATA SPEED

    Peak Download Rate
    150Mbps
    Peak Upload Rate
    50Mbps

    LOCATION SERVICES

    Satellite Systems
    GNSS (GPS, Glonass, Galileo, BeiDou)

    CORES

    Application Core
    ARM® Cortex™- A7 (1.2GHz)
    Telecom Core
    QDSP6 (691MHz)

    EMBEDDED SOFTWARE

    Firmware
    Pre-certified firmware, Secure boot
    Embedded Platform
    Legato® open source
    Linux Distribution
    Yocto 2.2
    Audio
    Codec: HR, FR, EFR, AMR, Digital Audio, DTMF, Echo Cancellation & Noise Reduction, I2S, PCM, VoLTE, Quality (ITU P.1140 and ERA
    GLONASS)
    System Drivers
    Windows® 7, Windows® 8, Windows® 10, Linux Driver: Standard ECM

    INTERFACES

    UART
    3
    USB
    1
    I2C
    1
    ADC
    4
    GPIO
    34
    Tx ON Indicator
    1
    SIM interface 1.8V/3V
    2
    SPI
    2
    SDIO
    2
    Flash LED output
    1

    CONTROL OPTIONS
    APIs, AT Commands

    HARDWARE

    Dimensions
    32x37x3.6mm
    Antenna
    Diversity, MIMO, GNSS Bias
    Temperature Range
    Industrial Grade: -40°C / +85°C

    APPROVALS

    Regulatory
    CCC

    CLOUD SERVICES
    Free Unlimited FOTA upgrades
